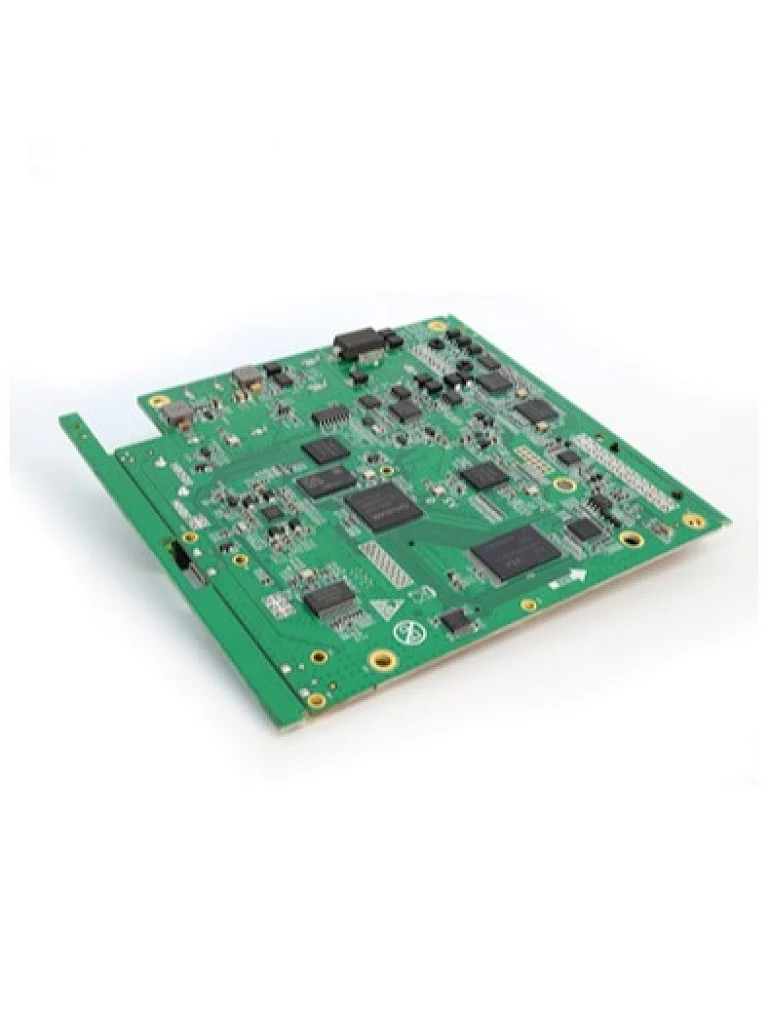

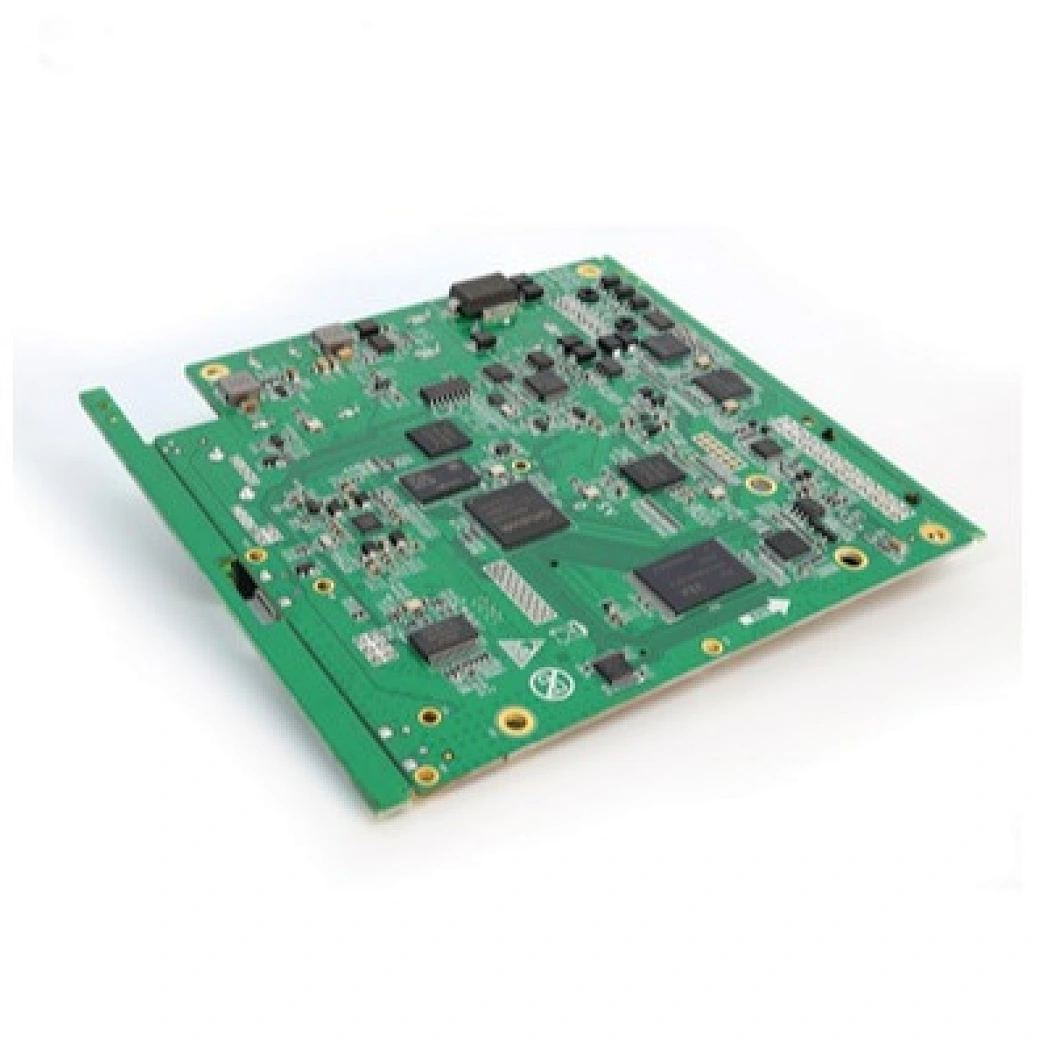

Custom pcba board pcb assembly service

pcba OEM services
STG can purchase the required materials according to the bill of materials provided by the customer, or perform PCB processing and assembly on the materials provided by the customer. Our company has a complete set of production equipment such as environmental protection workshop, high-speed SMT patch production line, plug-in assembly line, etc., and can process all kinds of electronic components with lead and lead-free.
Quantity
Contact Now
add to cart
     PCBA & pcb assembly manufacturer
    STG Electronic CO.,Ltd helps customers to do one-stop pcba services; the main services include PCB manufacturing, component procurement, pcb assembly, finished product engineering
and testing, Box build, MP3 players, portable game consoles, etc.
     STG is a leading PCB Assembly Electronics Manufacturing Services (EMS) provider focused on automotive, industrial, medical, consumer, telecom and technology companies.
     One-stop pcba turnkey service
      1.components sourcing
      2.SMT stencil
      3.SMT&Through holes assembly
      4.PCBA cable assembly
      5.PCBA conformal coating
      6.PCBA software programming
      7.PCBA functional testing
      pcba,pcb assembly

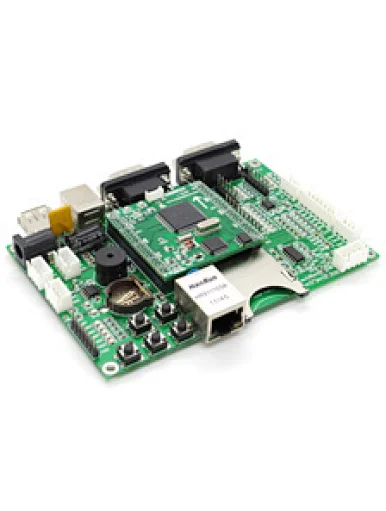

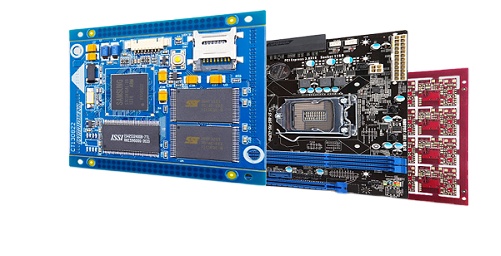

 PCBA Show
pcba,pcb assembly  pcba,pcb assemblypcba,pcb assembly

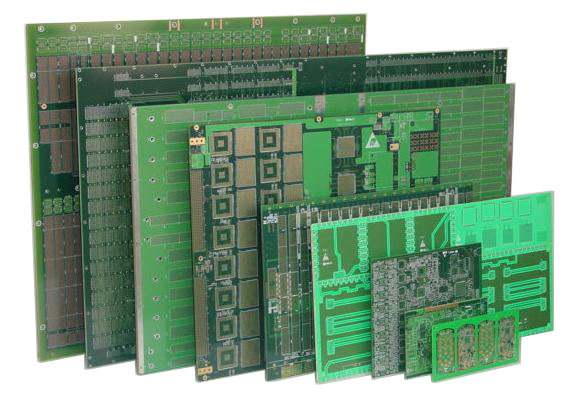

                     PCB fabrication                                                                                      multilayer pcb assembly                                                             pcb assembly
            pcba,pcb assembly pcba,pcb assemblypcba,pcb assembly

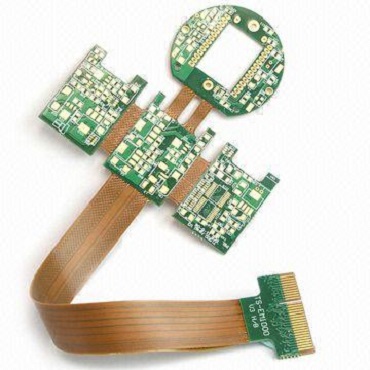

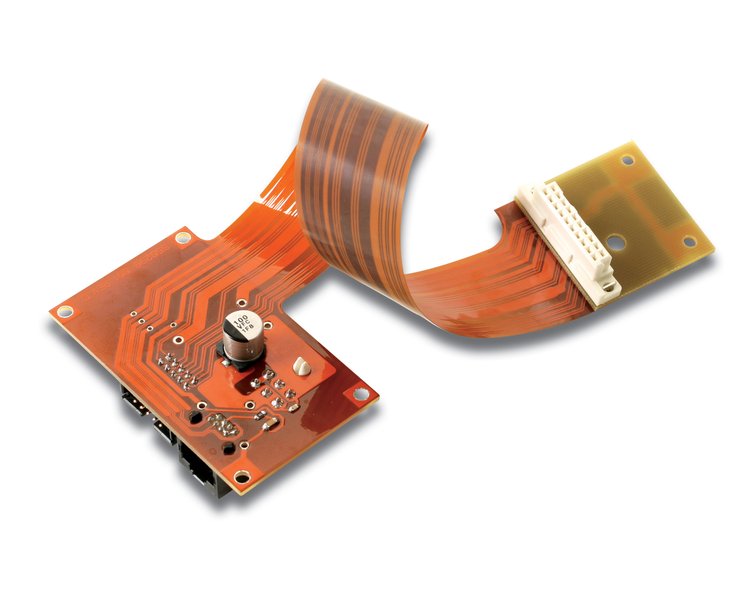

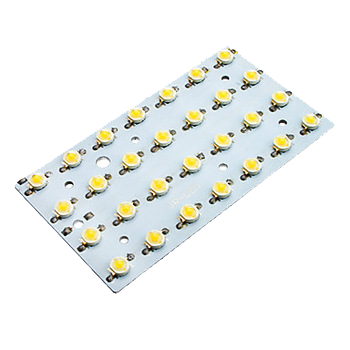

                                       flexible pcb assembly                                                          rigid-flex pcb assembly                                                      aluminum pcb assembly


Our pcb assembly capability
ArticleDescriptionCapability
Laminate MaterialsFR4,high TG FR4,high frequency,alum,FPC
Board Cutting Number of layers 1~30layer
 Min thickness for inner layers 0.003"(0.07mm)
 Cu thickness are excluded
Board Thickness      Standard (0.1-4mm±10%)
 Min. Single/Double:0.008±0.004"
 4layer:0.01±0.008"
 8layer:0.01±0.008"
 Bow and twist no more than 7/1000
Copper Weight  Outer Cu weight 0.5-4 Oz
 lnner Cu weight 0.5-3 Oz
Drilling     Min size 0.0078"(0.2mm)
 Drill deviation ±0.002"(0.05mm)
 PTH hole tolerance ±0.002"(0.05mm)
 NPTH hole tolerance ±0.002"(0.05mm)
Solder Mask    Color Green,white,black,red,blue...
 Min solder mask clearanace 0.003"(0.07mm)
 Thickness (0.012*0.017mm)
Silkscreen   ColorGreen,white,Red,Black,Yellow,Blue
 Min size0.006"(0.15mm)
 Min Lin/Space 0.075/0.075mm
Component Sourcing Yes
Tolerance of PCB ±5%
 Max size of finish board 550*550mm
 MOQ 1pcs
 Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP...
 PCB Outline Square,circle,irregular(with jigs)
Package 0201,0402,0603,0805,1206......QFN,BGA,SSOP,PLCC,LGA
Sub-assembly Plastic,metal,screen

PCBA application
                                  pcba,pcb assembly   pcba,pcb assembly   pcba,pcb assembly
                                                    aerospace defense pcba                                                 automotive pcba                                         household equipment pcba


                                  pcba,pcb assembly   pcba,pcb assembly   pcba,pcb assembly
                                                   industrial control pcba                                            medical equipment pcba                                                     robot pcba

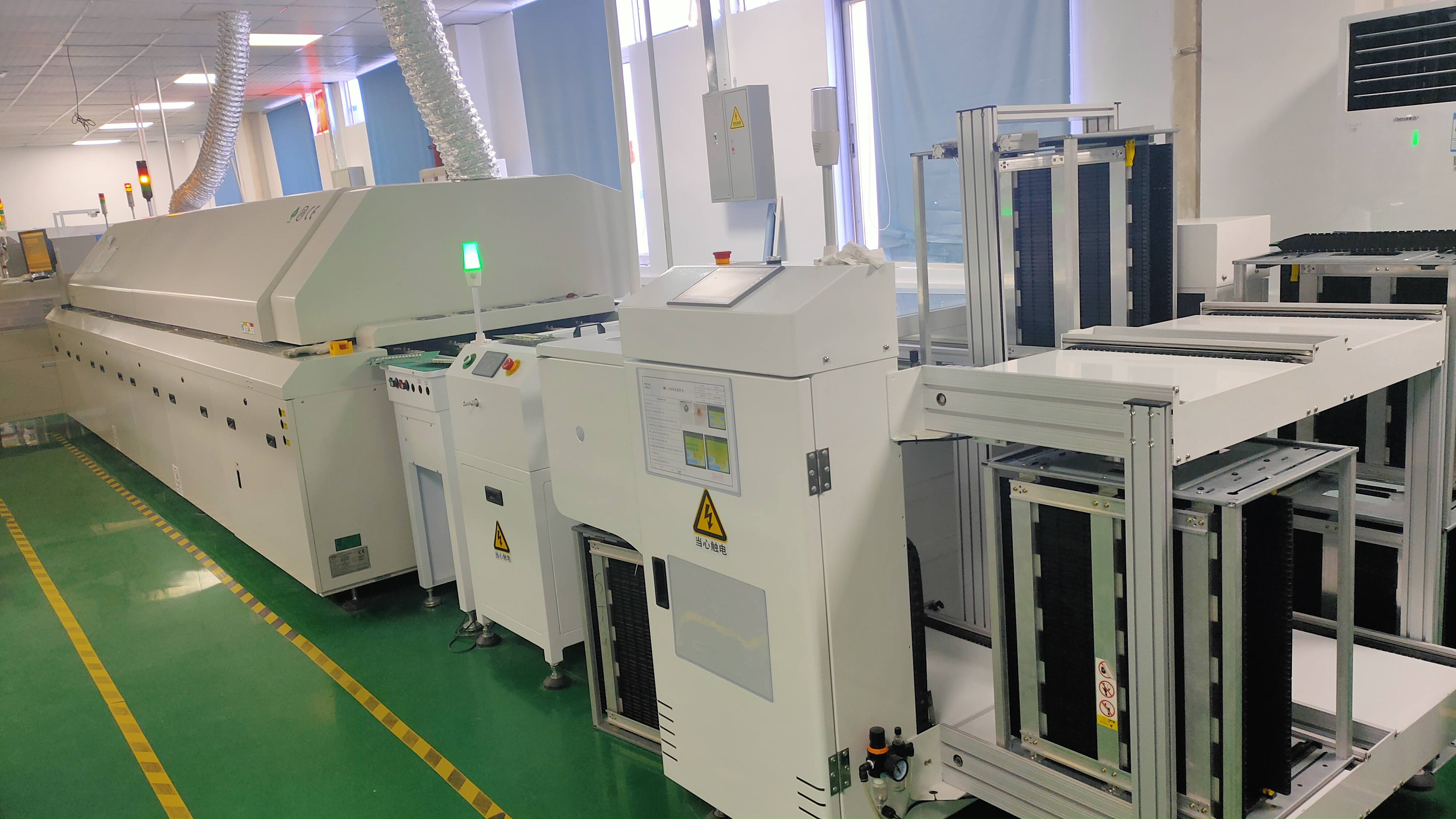

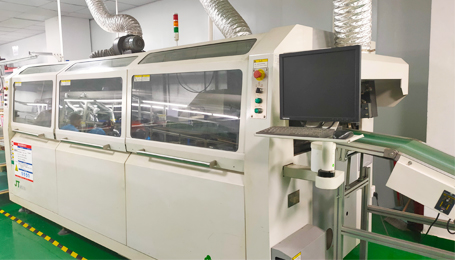

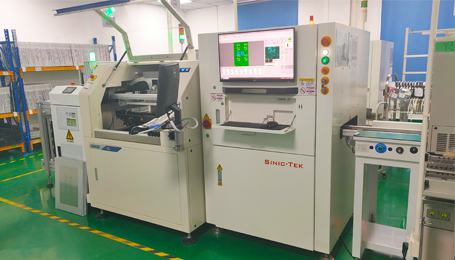

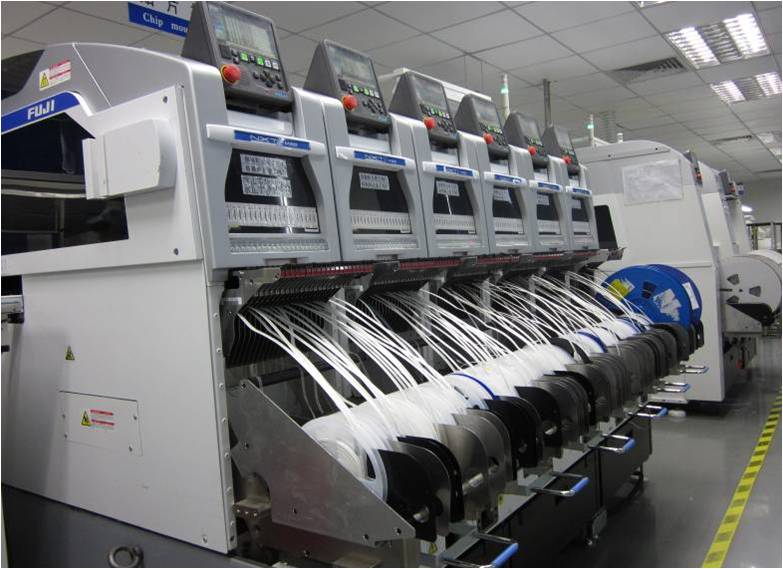

PCBA production equipment
pcba,pcb assembly pcba,pcb assemblypcba,pcb assembly  pcba,pcb assembly

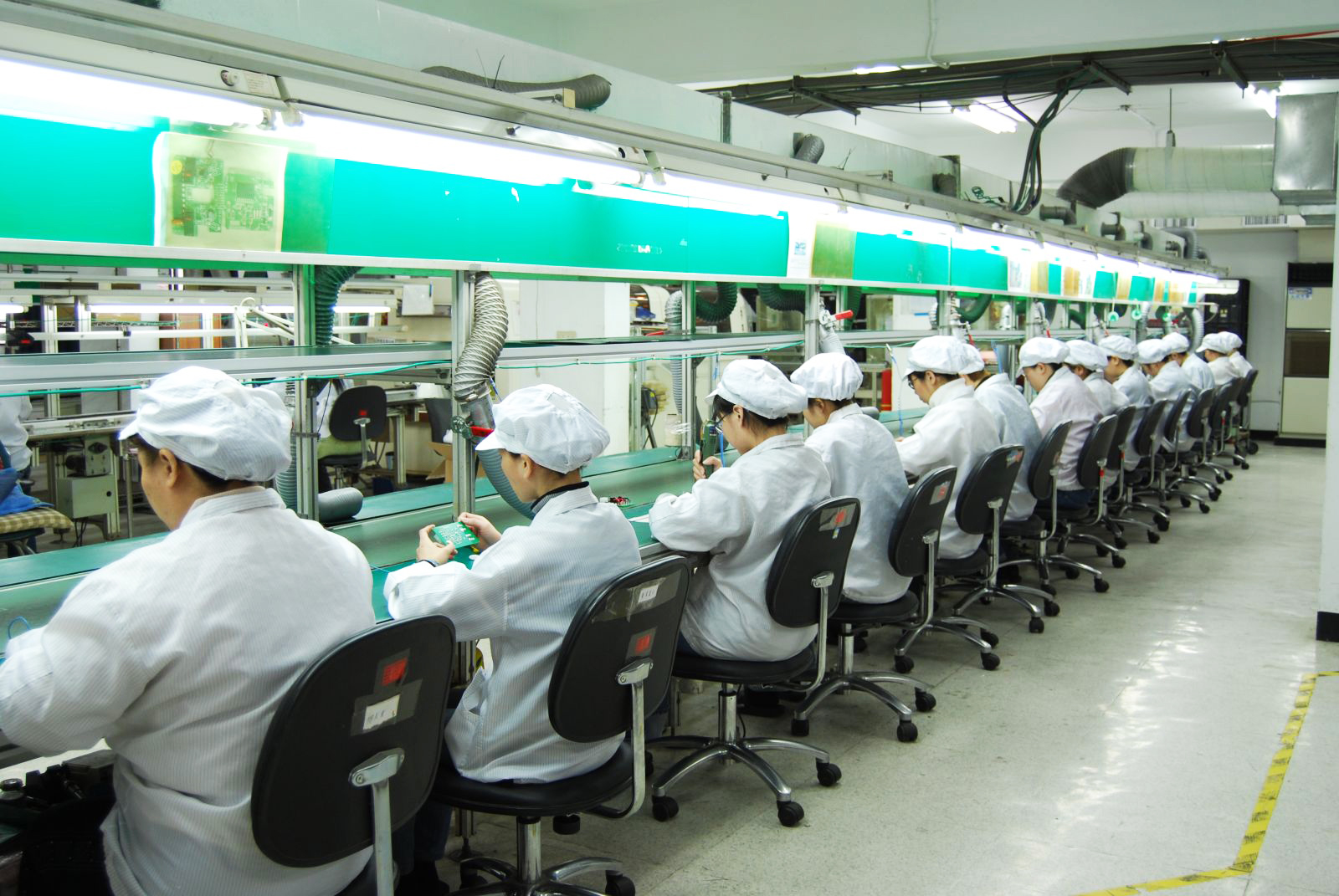

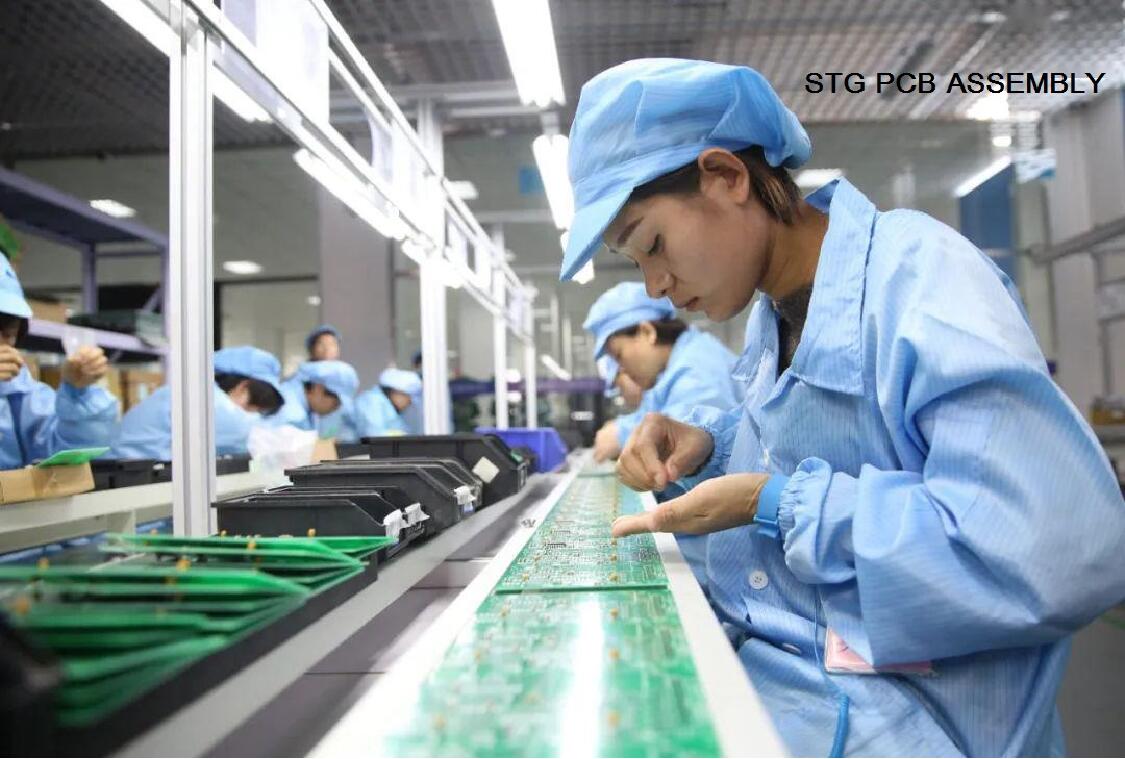

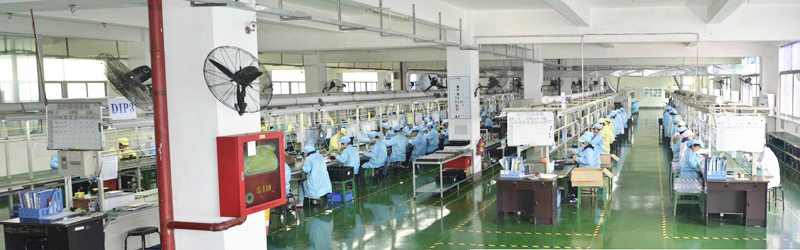

PCBA production workshop
pcba,pcb assembly
  pcba,pcb assembly pcba pcb assembly

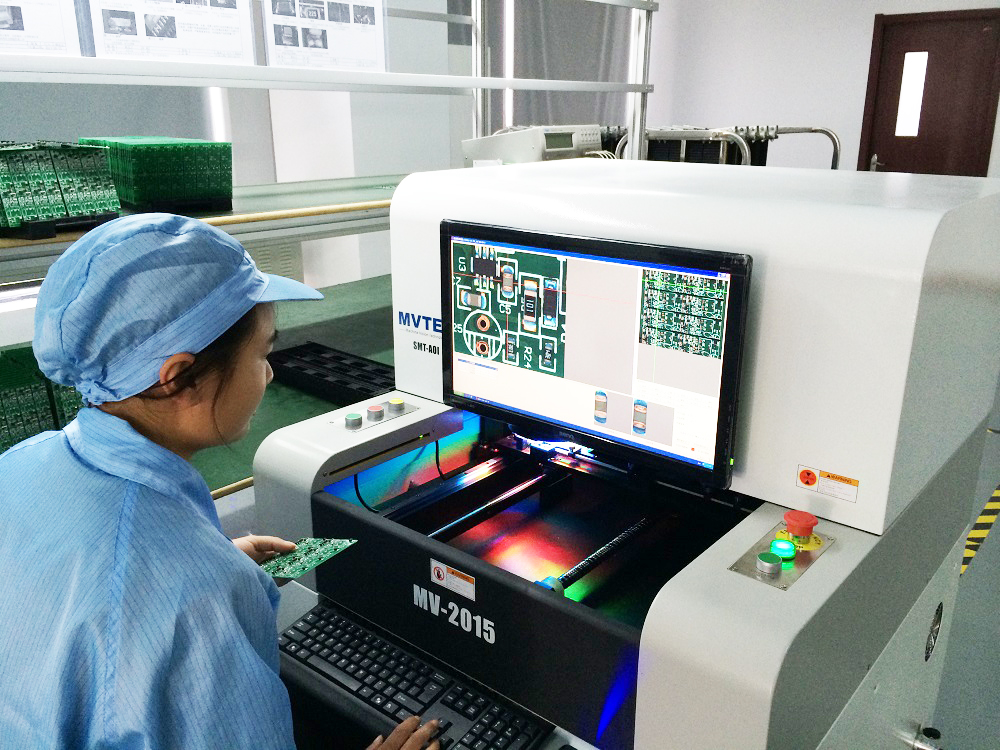

PCBA Quality Control
The company has successfully passed ISO9001:2015 quality management system certification, FCC safety management certification, ROHS environmental protection certification and ISO14001:2015 environmental management system certification, and strives to provide customers with high-quality products and services. Customers are welcome to send emails to contact us for detailed customized solutions. We sincerely look forward to working with you to create a better future!
pcba,pcb assembly

pcba quote,pcb assembly online quote
Requested information for pcb assembly quote:
1.Gerber file of the bare pcb board
2.BOM (Bill of material) for assembly
To short the lead time,please kindly advise us if there is any acceptable components substitution
3.Testing Guide & Test Fixtures if necessary
4.Programming files & Programming tool if necessary

Welcome to your inquiry,no matter by call or by email.We will provide you with pcba solution and pcb assembly quote.
