Custom pcba board pcb assembly manufacturer pcb manufacturing
Custom pcba services
Professional Custom PCBA OEM manufacturer,18 years PCB & PCBA Factory, pcb manufacturing And SMT DIP Electronic Components Assembly.
Quantity
STG provide pcb assembly service, PCBA OEM Contract Manufacturing Service.custom pcba board,PCBA manufacturer
STG has a professional technical engineer team and rich experience in pcba processing, and strictly checks and analyzes the customer's BOM list and related
technical documents. The PCBA processing services we provide start from the production of PCB circuit boards, select PCB manufacturers, and pay attention to
the quality of circuit boards and PCBA quality control system. Perfect IPC, IPQC, OQA and other management processes, pcba processing services, clear job
responsibilities, and strict implementation of IPC electronic assembly acceptance standards.
STG adopts the industry's best multi-function placement machine, ten temperature zone reflow furnace configuration, equipped with wave soldering, BGA rework
station, AOI, X-RAY testing equipment, SMT daily production capacity of about 1 million pieces; daily average of 200,000 DIP plug-ins , Our product range covers
various fields, such as consumer electronics, telecommunications, home electronics, industrial products, automotive assembly, medical equipment, etc.
Our PCBA services include:
1. PCBA, pcb assembly: SMT & PTH & BGA
2. PCBA and enclosure design
3. Components sourcing and purchasing
4. Quick prototyping
5. Plastic injection molding
6. Metal sheet stamping
7. Final assembly
8. Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
9. Custom clearance for material importing and product exporting
pcba OEM factory smt pcb assembly service
One-stop OEM pcb assembly services pcba manufacturer
STG provides high-quality pcb assembly services, testing pcb printing quality, component placement quality and solder joint quality through automatic
optical inspection instruments.
Our pcb assembly craft capability
PCBA processing services, including PCB proofing expedited proofing circuit board, single-sided PCB, double-sided
circuit boards, multi-layer circuit boards
We can customize all kinds of pcb assembly.
1.aluminum pcb assembly
2.flexible pcb assembly
3.rigid-flex pcb assembly
4.RF PCB
5.FR4 PCB

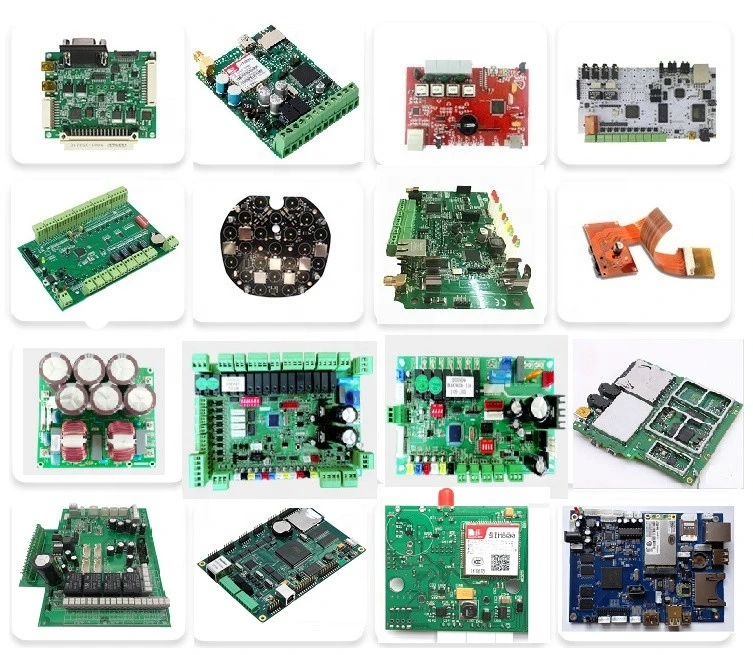

Our pcba board show
Product application
pcb&pcba assembly manufacturer
pcba RoHS compliant
pcb assembly quote,pcba online quote
Requested information for pcb assembly quote:
1. Gerber file of the bare PCB board
2. BOM (Bill of material) for assembly
To short the lead time, please kindly advise us if there is any acceptable components substitution
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
Welcome to your inquiry,no matter by call or by email.We will provide you with pcba solution and pcb assembly quote.
STG has a professional technical engineer team and rich experience in pcba processing, and strictly checks and analyzes the customer's BOM list and related
technical documents. The PCBA processing services we provide start from the production of PCB circuit boards, select PCB manufacturers, and pay attention to
the quality of circuit boards and PCBA quality control system. Perfect IPC, IPQC, OQA and other management processes, pcba processing services, clear job
responsibilities, and strict implementation of IPC electronic assembly acceptance standards.
STG adopts the industry's best multi-function placement machine, ten temperature zone reflow furnace configuration, equipped with wave soldering, BGA rework
station, AOI, X-RAY testing equipment, SMT daily production capacity of about 1 million pieces; daily average of 200,000 DIP plug-ins , Our product range covers
various fields, such as consumer electronics, telecommunications, home electronics, industrial products, automotive assembly, medical equipment, etc.
Our PCBA services include:
1. PCBA, pcb assembly: SMT & PTH & BGA
2. PCBA and enclosure design
3. Components sourcing and purchasing
4. Quick prototyping
5. Plastic injection molding
6. Metal sheet stamping
7. Final assembly
8. Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
9. Custom clearance for material importing and product exporting
One-stop OEM pcb assembly services pcba manufacturer
STG provides high-quality pcb assembly services, testing pcb printing quality, component placement quality and solder joint quality through automatic
optical inspection instruments.
| pcb production 1.NO MOQ 2.24 hours quick turn prototype 3.prototype&mass production 4.on time delivery 5.100% electrical test gurantee 6.competitive price  | pcb assembly 1.SMT&PTH assembly 2.fine pitch BGA QFN smallest 0201 package 3.Bonding assembly 4.PCBA AOI&X-ray inspection 5.PCBA ICT function testing 6.no MOQ requirements 7.over 150 speedy samples can be processed within 1 8.working day 9.40 million to 80 million SMT points each month  | one-stop turnkey service 1.components sourcing 2.SMT stencil 3.SMT&Through holes assembly 4.cable assembly 5.PCBA conformal coating 6.PCBA software programming 7.PCBA functional testing 8.PCBA enclosure assembly 9.PCBA customized packaging  |
Our pcb assembly craft capability
| Article | Description | Capability |
| Laminate Materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board Cutting | Number of layers | 1-30 |
| Min.thickness for inner layers | 0.003”(0.07mm) | |
| (Cu thickness are excluded) | ||
| Board Thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” | |
| 4layer:0.01±0.008” | ||
| 8layer:0.01±0.008” | ||
| Bow and twist | no more than 7/1000 | |
| Copper Weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z | |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) | |
| PTH hole tolerance | ±0.002″(0.005mm) | |
| NPTH hole tolerance | ±0.002″(0.005mm) | |
| Solder Mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) | |
| Thickness | (0.012*0.017mm) | |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) | |
| Component Sourcing | Yes | |
| Tolerance of PCB | ±5% | |
| Max Size of Finish Board | 700*460mm | |
| MOQ | NO MOQ (1pcs) | |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | |
| PCB Outline | Square,circle,irregular(with jigs) | |
| Package | QFN,BGA,SSOP,PLCC,LGA | |
| Sub-assembly | Plastic,metal,screen | |
| Min Line/Space | 0.075/0.075mm | |
PCBA processing services, including PCB proofing expedited proofing circuit board, single-sided PCB, double-sided
circuit boards, multi-layer circuit boards
We can customize all kinds of pcb assembly.
1.aluminum pcb assembly
2.flexible pcb assembly
3.rigid-flex pcb assembly
4.RF PCB
5.FR4 PCB
Our pcba board show
Products and services are widely used in automotive, electric power, communications, aerospace, industrial control, computer applications and other fields!
aerospace defense pcba automotive pcba household equipment pcba
industrial control pcba medical equipment pcba robot pcb assembly
aerospace defense pcba automotive pcba household equipment pcba
industrial control pcba medical equipment pcba robot pcb assembly
pcb&pcba assembly manufacturer
pcba RoHS compliant
pcb assembly quote,pcba online quote
Requested information for pcb assembly quote:
1. Gerber file of the bare PCB board
2. BOM (Bill of material) for assembly
To short the lead time, please kindly advise us if there is any acceptable components substitution
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
Welcome to your inquiry,no matter by call or by email.We will provide you with pcba solution and pcb assembly quote.
